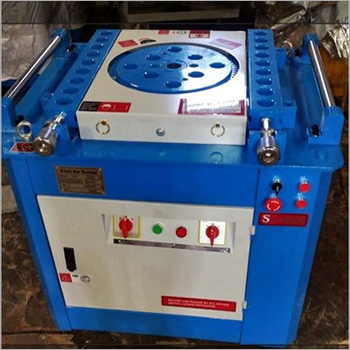

GW50 TMT Bar Bending Machine

Name: GW50 TMT Bar Bending Machine
Brand: ICON Industries
Price: 30000 INR
Availability: InStock

Price 30000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

GW50 TMT Bar Bending Machine Specification

Product Type
GW50 TMT Bar Bending Machine

Bending Angle
0-360 Adjustable

Dimension (L*W*H)
950 x 800 x 900 mm Millimeter (mm)

Phase
3 Phase

Automation
Semi-Automatic

Machine Type
Bar Bending Machine

Power
4 kW Watt (w)

Usage
Industrial

Raw Material
TMT Bar, Steel Bar

Bending Strength
Up to 32 mm Bar

Output
High Precision Bending

Color
Red

Voltage
410 Volt (v)

Bending Speed
5-10 RPM

Weight
330 Kilograms (kg)

Motor Speed
1440 RPM RPM

Service Life
Long/Heavy Duty Build

Gear Box
Heavy Duty/Self Lubrication

Transmission Type
Worm Gear

Operation
Foot Pedal and Manual Switch

Noise Level
Low

Plate Thickness
16 mm

Electric Control System
Copper Wiring/Overload Protector

Main Shaft Diameter
40 mm

GW50 TMT Bar Bending Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Day

Delivery Time
1 Days

About GW50 TMT Bar Bending Machine

GW50 TMT Bar Bending Machine is used on construction site for bending TMT bar efficiently. Suitable for A3 round/flat/square bar, and III class reinforced bar, it has capability to bend the steel bar to types of Geometric shape for construction site. Fitted with full-sealed gear box, ideal thickness working desk, dust proof copper motor, its alloy tools steel gears & working disc utilize quenching and forging workmanship. Moreover, gear box of GW50 TMT Bar Bending Machineis separated with working disc, and therefore the gear and box will be not distortion throughout working period.

Product Details :

Minimum Order Quantity	1 unit
Bending Cycle Speed	20 strokes/min
Max. Bending Capacity	32mm TMT Bar
Country of Origin	Made in India
Brand	ICON
Automatic Grade	Automatic
Weight	330 kg
Automation Grade	Manual
Size	960mm X 900mm X 990mm
Frequency	50Hz
Voltage	410V
Motor Speed	2880 RPM
Power Source	Electric
Phase Type	3 Phase / Single Phase
Max Bending Radius	200-250 mm
Model Name/Number	GW50 / BB50
Capacity	Upto 32mm TMT Bar / Upto 40 mm Rebar / Upto 42mm Reinforced Bar
Usage/Application	Industrial

GW50 series automatic bar bender price is a bender machine for A3 round bar, III class reinforced bar, flat bar and square bar. It can bend the steel bar to kinds of Geometric shape for construction site.

Feature :

Adopt full-sealed gear box and the gear box is separated with working disc. So the gear and box will be not distortion during working period, no leaked lubricating oil from gear box.
Alloy tools steel gears and working disc adopt forging and quenching workmanship
Dust proof copper motor
Thickness working desk

Heavy Duty Performance and Durability

Built with a robust main shaft and thick bending plate, the GW50 TMT Bar Bending Machine is designed to withstand continuous, intensive industrial usage. Its self-lubricating system and copper wiring electric controls ensure protection against overload and extended service life, making it suitable for demanding construction and manufacturing sites across India.

Precision and Versatile Operation

This semi-automatic machine utilizes worm gear transmission to deliver precision bends of 0360, supporting bar diameters from 6 mm to 50 mm. It features both foot pedal and manual switch operations, giving users flexibility and control during the bar bending process, alongside a customizable bend radius for diverse applications.

FAQs of GW50 TMT Bar Bending Machine:

Q: How does the GW50 TMT Bar Bending Machine ensure accurate and high precision bending?

A: The machine integrates worm gear transmission, a 40 mm high-strength shaft, and advanced electric controls to guarantee repeatable accuracy, allowing bends at any angle between 0 and 360 on steel and TMT bars, ensuring uniform results for industrial projects.

Q: What is the typical industrial process for operating this bar bending machine?

A: Users can operate the GW50 either by foot pedal or manual switch. Select the required bending angle and feed the steel or TMT bar (650 mm), and the motor, running at 1440 RPM, initiates the bending process with adjustable speed of 510 RPM, conforming to project-specific precision and radius requirements.

Q: When is the GW50 TMT Bar Bending Machine recommended for use?

A: This machine is best suited for high-volume industrial environments where frequent bending of steel or TMT bars is required, such as construction sites, manufacturing units, and infrastructure projects, given its capability, durability, and rapid output.

Q: Where can the GW50 Bar Bending Machine be installed?

A: It is designed for use in heavy-duty industrial locations across India. The compact dimensions (950 x 800 x 900 mm) allow it to fit manufacturing floors, workshops, and construction areas where metal bar bending is essential.

Q: What benefits does the self-lubrication feature provide?

A: Self-lubrication reduces maintenance requirements, minimizes wear and tear, and extends the service life of critical components, ensuring sustained peak performance and lower operating costs over time.

Q: How does the copper wiring and overload protector enhance machine safety?

A: Copper wiring increases electrical efficiency and durability, while the overload protector safeguards the system against current surges and operational overload, reducing downtime and protecting operators from electrical hazards.

Q: What types of raw material can be processed by the GW50 machine?

A: This bar bending machine efficiently bends both TMT and steel bars ranging from 6 mm to 50 mm in diameter, adapting to varied construction and engineering applications with customizable output settings.
